Boss PW-3 Wah Guitar Effect Pedal

The all-analog PW-3 delivers pro wah tones in a rugged, space-saving design that conserves precious real estate on your pedalboard. Newly developed by BOSS, the PW-3’s Rich mode has a uniquely full wah voice that retains the low-end definition and fullness lost with typical wah circuits. Want a more traditional tone? Just flip the rear-panel switch to Vintage mode for that classic wah vibe.

Unlike other pedals that sacrifice feel and functionality when trimmed down in size, the PW-3 strikes the perfect balance between practicality and playability. Its die-cast aluminum chassis is solid and substantial underfoot, and the long, smooth pedal action is highly responsive and feels great. Another issue with downsized pedals is that it’s hard to see when the effect is on or off, because your foot blocks the view. The PW-3 solves this with status LEDs on each side of the pedal, making it much easier to see when the wah is activated.

Features
Unique Rich mode retains low-end fullness, eliminating the thin tone of typical wah designs
Vintage mode for the familiar classic wah sound
Low-noise operation and pro playing feel with smooth pivot action and adjustable tension
Space-saving design fits easily on crowded pedalboards
Rugged, die-cast aluminum chassis provides a rock-solid feel and gig-ready durability

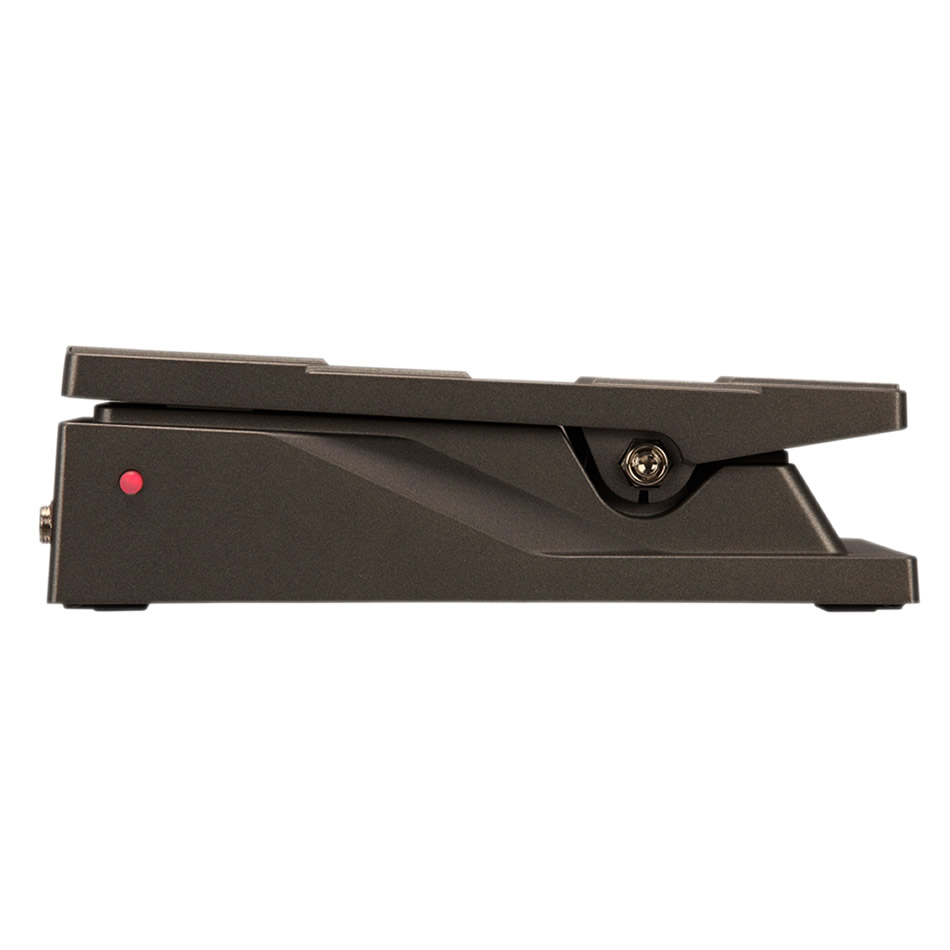

On/off LEDS on each side of the pedal make it easy to see status at a glance

Specifications

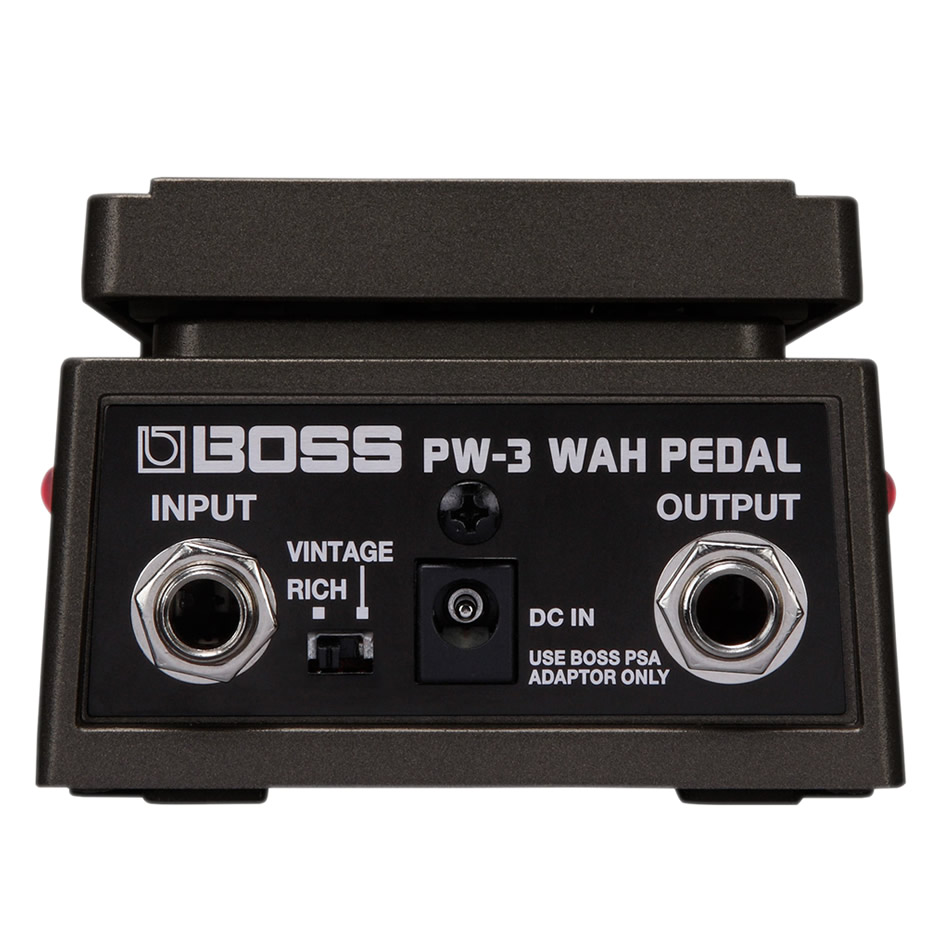

Connectors
    INPUT jack: 1/4-inch phone type
    OUTPUT jack: 1/4-inch phone type
    DC IN jack
Indicators
    Dual indicator
Controls
    Pedal
    Tone switch
Power Supply
    Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
    AC adaptor (PSA series: sold separately)
Current Draw
    25 mA
Accessories
    Owner’s Manual
    Alkaline battery (9 V, 6LR61)
    Sheets (for adjusting the force required to turn the wah on/off)
Size and Weight
Width
    80 mm
    3-3/16 inches
Depth
    192 mm
    7-9/16 inches
Height
    58 mm
    2-5/16 inches
Weight
    800 g
    1 lb 13 oz
Size and Weight(Maximum height)
Width
    80 mm
    3-3/16 inches
Depth
    192 mm
    7-9/16 inches
Height
    74 mm
    2-15/16 inches
Weight
    800 g
    1 lb 13 oz
