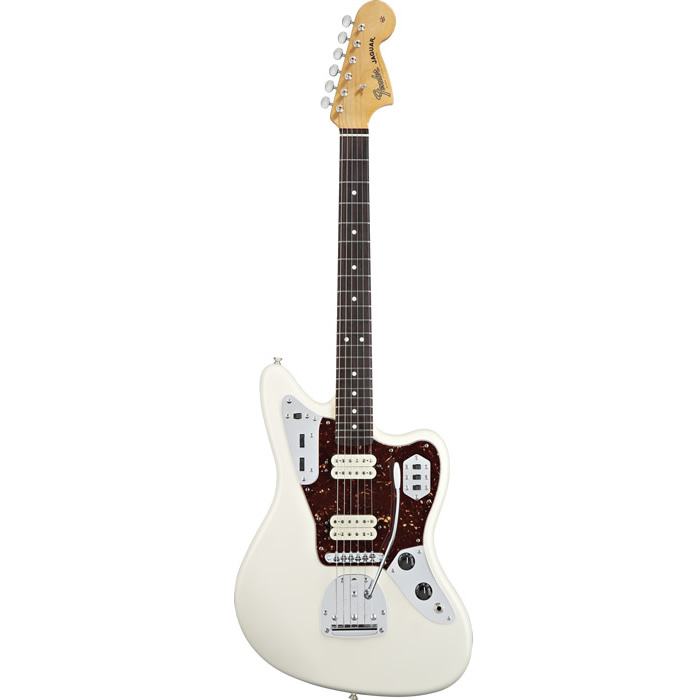

The Classic Player Jaguar Special HH guitar turbocharges the time-honored Jaguar model with several thoroughly modern improvements, including dual humbucking pickups, innovative electronics that include a blend-able coil tap for greater tonal versatility than ever, a 9.5″ fingerboard radius and a neck pocket with increased back-angle for improved stability and sustain.

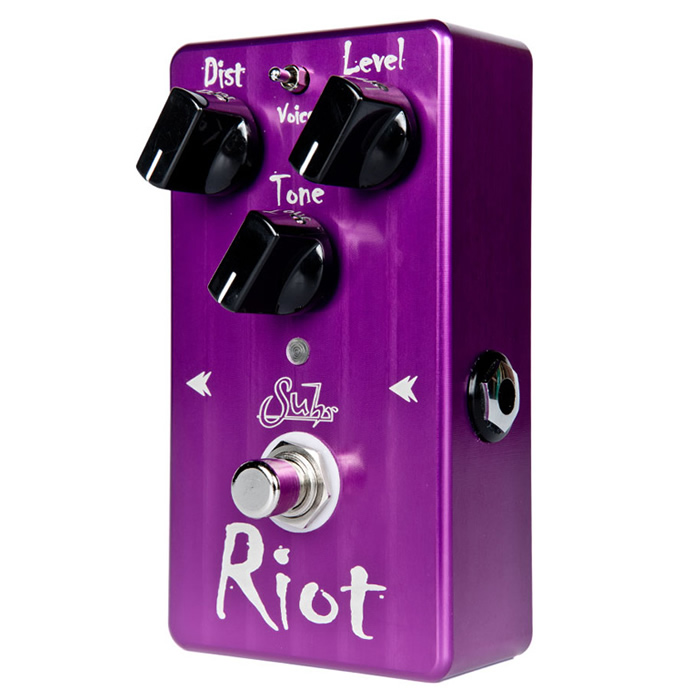

OVERVIEW Riot is a versatile high-gain distortion pedal with the sonic characteristics and touch sensitivity of a high quality 100 watt tube amplifier. Riot will transform a clean amp into an authoritative rock tone that inspires all of your favorite riffs.

CONTROLS

Riot features an easy to tweak layout which includes Gain, Level, Tone and a three position Voicing switch.?

??Dist: Adjusts the amount of gain added to your tone, taking you from classic crunch to high-gain heaven.
Level: Adjusts the output of the pedal. Riot provides enough level to push the front end of any tube amp into natural overdrive.
Tone: Shapes the overall tonal response of the pedal, from smooth and warm to cutting lead tones.

Voicing Switch (three positions):????

Left: Produces a natural, organic tone that responds dynamically to your guitars volume control.
Middle: Puts you into high gain territory with a solid midrange, with a tight bottom end.
Right: Produces a vintage high gain response, with excellent definition.

General

Model Name: Classic Player Jaguar Special HH, Rosewood Fingerboard, Olympic White
Model Number: 0141710305
Series: Classic Player
MSRP: $1199.99
Color: Olympic White

Body

Body Material: Alder
Body Finish: Polyester
Body Shape: Jaguar

Neck

Neck Material: Maple
Neck Finish: Gloss Urethane
Neck Shape: “C” Shape
Scale Length: 24″ (610 mm)
Fingerboard: Rosewood
Fingerboard Radius: 9.5″ (241 mm)
Number of Frets: 22
Fret Size: Medium Jumbo
String Nut: Synthetic Bone
Nut Width: 1.650″ (42 mm)
Position Inlays: Dot
Truss Rod Nut: Vintage-Style Slotted
Neck Plate: 4-Bolt Vintage-Style

Electronics

Bridge Pickup: Enforcer Humbucking
Neck Pickup: Enforcer Humbucking
Controls: Master Volume, Master Tone
Pickup Switching: Neck Pickup On/Off Slide Switch, Bridge Pickup On/Off Slide Switch, Normal/Low Cut Slide Switch
Pickup Configuration: HH

Hardware

Bridge: Adjusto-Matic Bridge with Vintage Style “Floating” Tremolo Tailpiece and Tremolo Lock Button
Hardware Finish: Chrome
Tremolo Arm Handle: Screw-In Style Jaguar/Jazzmaster Tremolo Arm
Tuning Machines: Vintage-Style
Pickguard: 4-Ply Tortoiseshell
Control Knobs: Black Plastic
Auxiliary Switching: Master Kill Slide Switch, Neck Pickup Humbucking/Single-Coil Blend Control, Bridge Pickup Humbucking/Single-Coil Blend Control

Miscellaneous

Strings: Fender USA 250R, NPS, (.010-.046 Gauges)
Unique Features: 2 Enforcer Humbucking Pickups, Adjusto-Matic Bridge, Medium Jumbo Frets, New Neck Pocket Cut Provides Better Pitch, 9.5″ Radius, Trem Plate Moved Closer to Bridge to Increase Break Angle and Sustain, Screw-In Tremolo Arm, Black Plastic Knobs and Switches, Humbucker/Single-Coil Blend Controls, Black Plastic Knobs and Switches
Included Accessories: Deluxe Gig Bag

Suhr Riot Distortion>

UNIQUE FEATURES

?Riot includes a number of unique features: True Bypass via a relay, Fx Link remote switching, and Low Battery Monitor.

?

True Bypass: Riot is true bypass via a relay. This function allows for the remote switching, and the battery monitor feature. The relay produces less popping when switching the pedal on and off.

?

FX Link: The FX Link connector allows the pedalﾒs switching function to be controlled from an external switch, pedal board, loop switcher, or any other custom interface. FX Link also provides the ability to power up in the On/Off state.

?

Low Battery Monitor: Riot incorporates a unique battery monitor that alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.

?

SPECIFICATIONS

Input Impedance: 1M ohm

Output Impedance: 600 ohm

Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm

Operating Voltage: 4V to 18V (nominal 9V)

Maximum Voltage: 20Vdc

Reverse Battery Protection: yes

Over Voltage Protection: yes

Current Consumption: 8mA

Estimated Battery Life: 75 ﾖ 100 hours continuous use

Dimensions: 4.875ﾔ Width x 3.875ﾔ Depth x 1.375ﾔ Height

Weight: One pound

FX Link Connector: 1/8ﾔ stereo

FX Link max Voltage: 3.3Vdc

Shield ? Tip: Activate Mid Boost

Shield ? Ring: Activate Boost

ROHS Compliant: Yes

Agency Approvals: N/A
