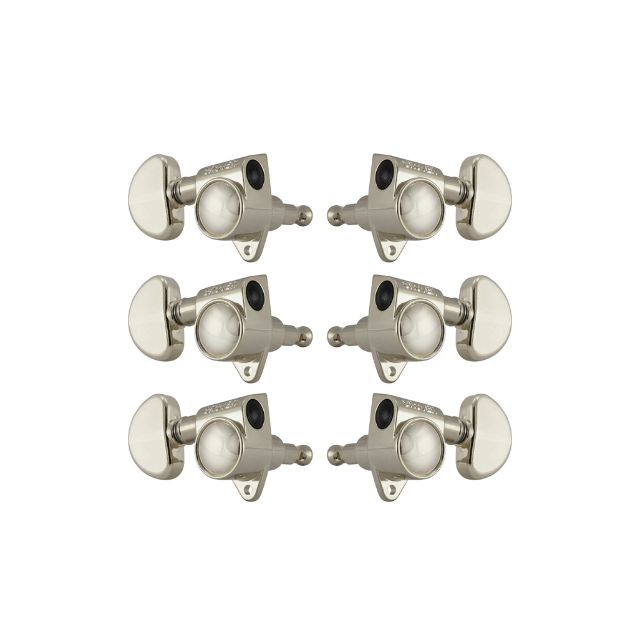

ROTOMATICS (102 SERIES) NICKEL
The 102 Series machine heads are a triumph in engineering and styling. The housing provides a maximum bearing for worm, gear, and string post. Gear ratio is 14:1. Worm and gear are precision-cut for perfect meshing, which eliminates backlash and slippage. Countersunk tension screw permits player to regulate turning tension to any degree. Enclosed gear box with special lubricant for a lifetime of trouble-free service.
• Sealed-in, lubricated gears
• 14:1 gear ratio
• 25/64” post hole
• Post length to hole: 23mm
• Overall post length: 28.2mm
• Weight per pc/per set: 1.6oz/9.6oz
• Max. string gauge: .074”
• Hardware included (bushings, washers, screws)
• Drop-in replacement for:
102-18 Series
102V Series
103 Series
106 Series
109 Series
109-18 Series
135 Series (Top mounting hole will be visible)
136 Series (Top mounting hole will be visible)
502 Series
509 Series
Available in:
For standard guitars, 3 Treble and 3 Bass, Set of 6
No. 102N Nickel
No. 102C Chrome
No. 102G Gold
No. 102BC Black Chrome
W/ Keystone Buttons
For standard guitars, 3 Treble and 3 Bass, Set of 6
No. 102NK Nickel
No. 102CK Chrome
No. 102GK Gold
No. 102BCK Black Chrome
