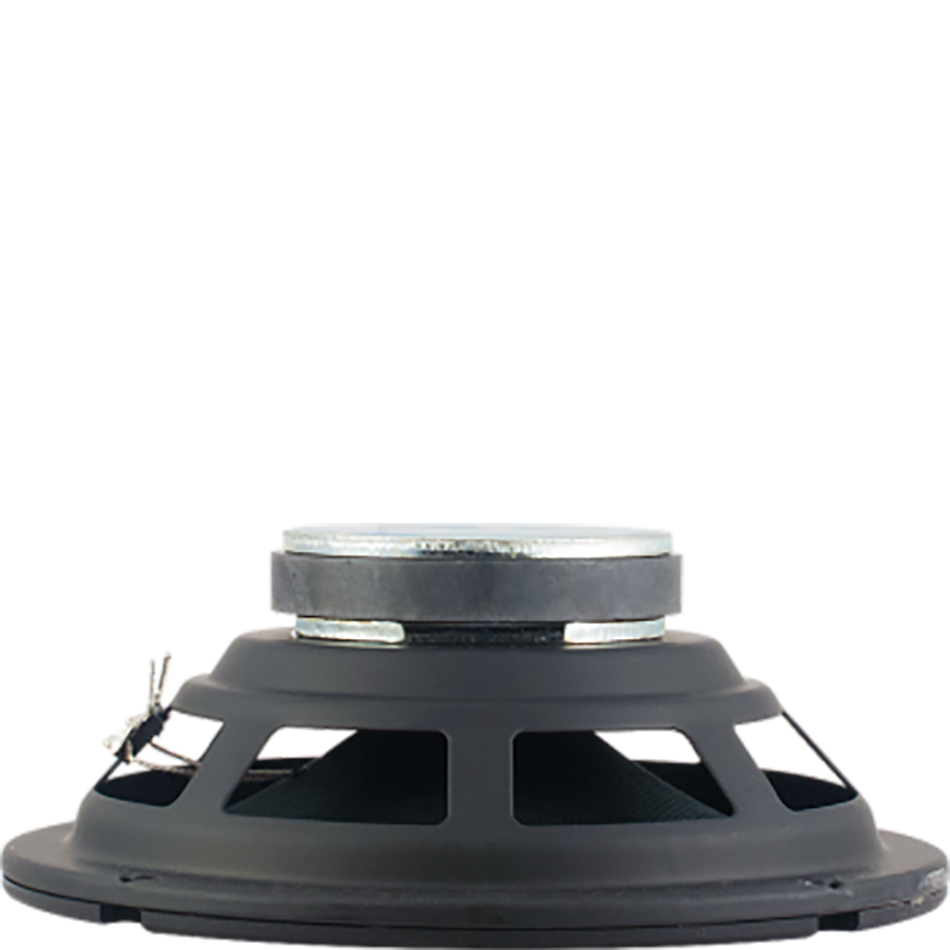

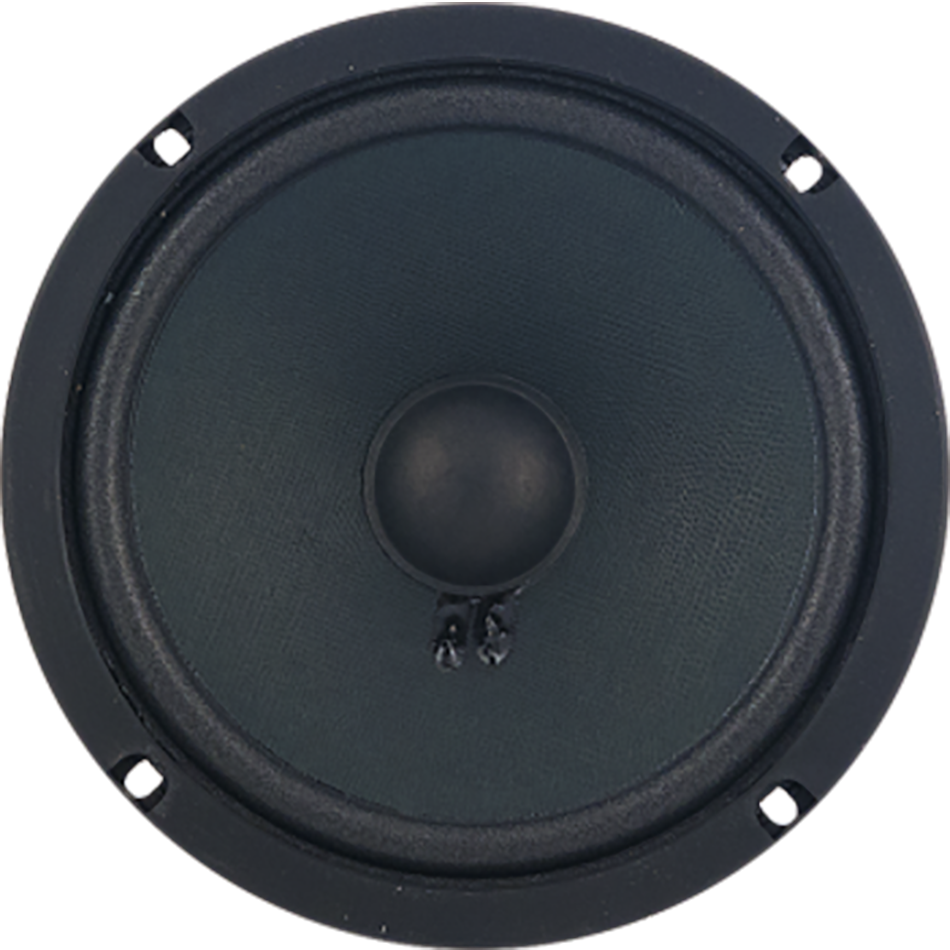

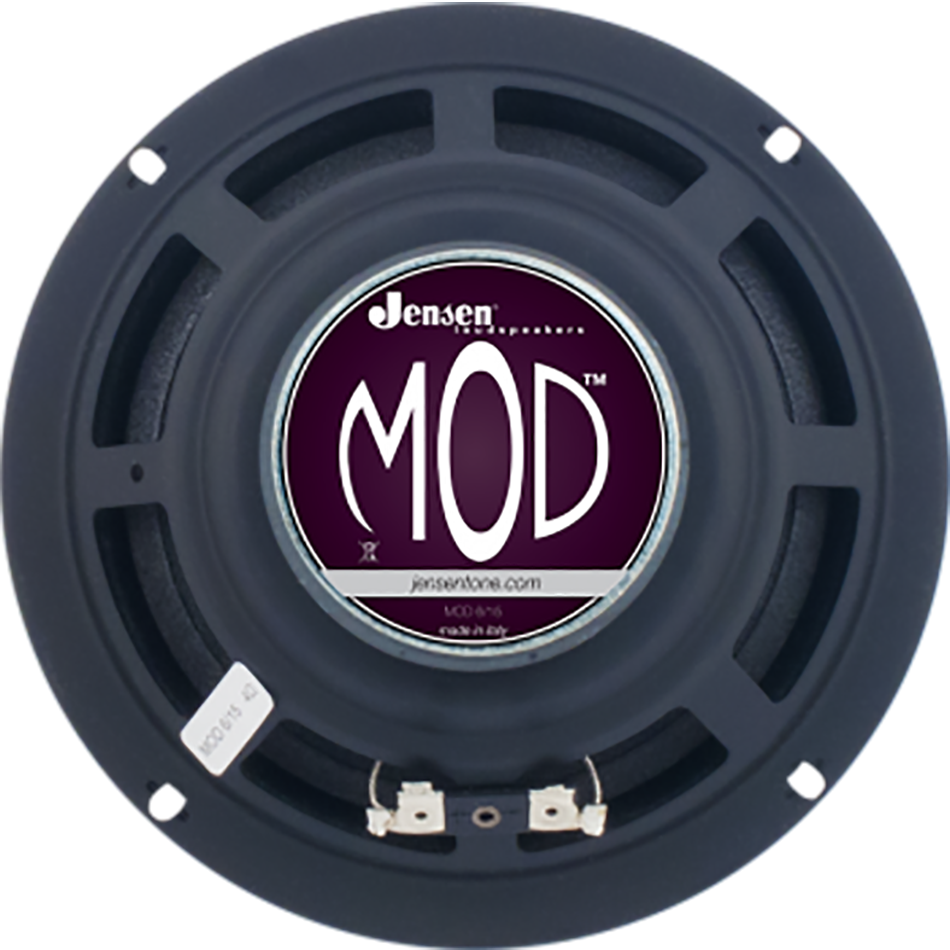

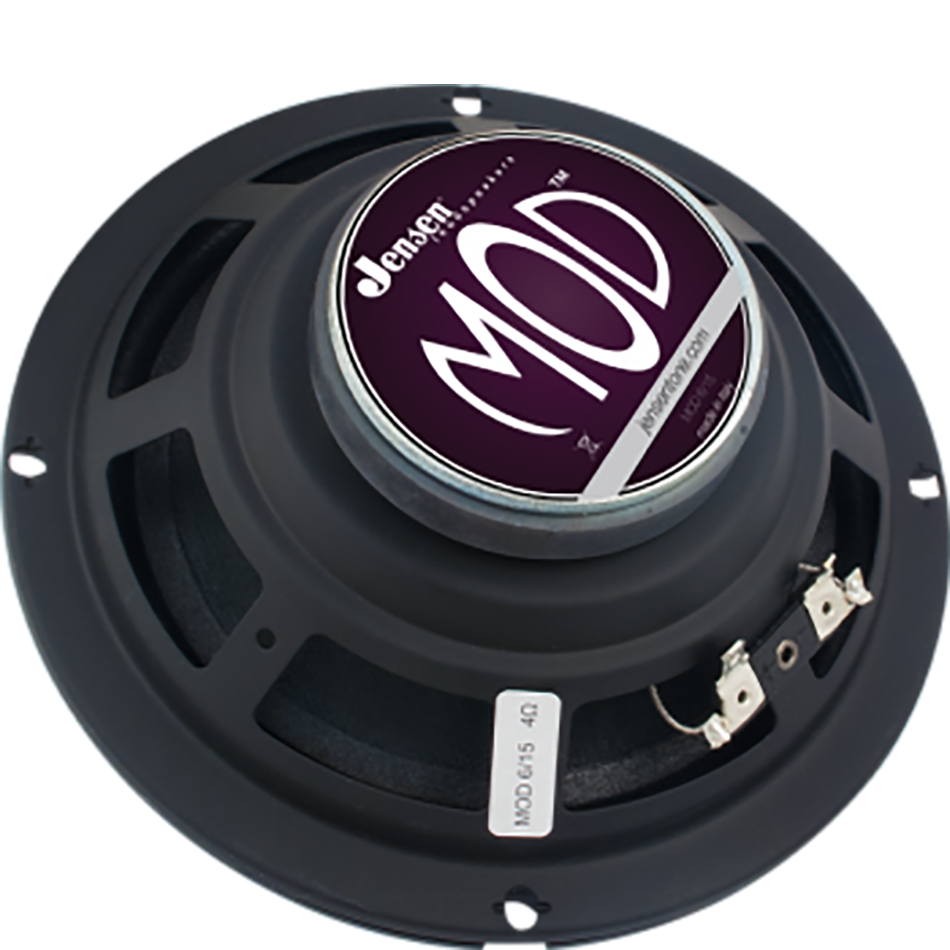

Jensen MOD6 6” Speaker
MOD6-15 6″, 15 watts
- Ohms: 8Ω
This 6″ speaker packs 15 watts of power. It is a good upgrade for small practice amps.
| Nominal Overall Diameter | 165 mm. | 6 in. |
| Nominal Voice Coil Diameter | 20 mm. | 0.75 in. |
| Magnet Weight | 160 g | 5.60 oz |
| Overall Weight | 1.30 lbs | |
| Flux Density | 1.10 T |
| Voice Coil DC Resistance | RE | 6.64 Ω |
| Resonance Frequency | ƒS | 89.9 Hz |
| Mechanical Q Factor | QMS | 8.44 |
| Electrical Q Factor | QES | 1.44 |
| Total Q Factor | QTS | 1.23 |
| Mechanical Moving Mass | MMS | 6.7 g |
| Mechanical Compliance | CMS | 465 µm/N |
| Force Factor | BxL | 4.19 Wb/m |
| Equivalent Acoustic Volume | VAS | 9.9 lt. |
| Maximum Linear Displacement | XMAX | ± 0.50 mm |
| Reference Efficiency | nO | 0.48 % |
| Diaphragm Area | SD | 122.7 cm2 |
| Losses Electrical Resistance | RES | 39.0 Ω |
| Voice Coil Inductance @ 1kHz | LE | 0.43 mH |
| Magnet | Ferrite | |
| Voice Coil Winding | Copper | |
| Voice Coil Former | Epotex | |
| Cone Material | Paper | |
| Surround Material | Foam | |
| Dust Dome Material | Solid Paper | |
| Basket Material | Pressed Sheet Steel |
| Nominal Impedance | 8 Ω | |
| Rated Power | 15 W | |
| Musical Power | 30 W | |
| Sensitivity@1W,1m | 89.9 dB |
