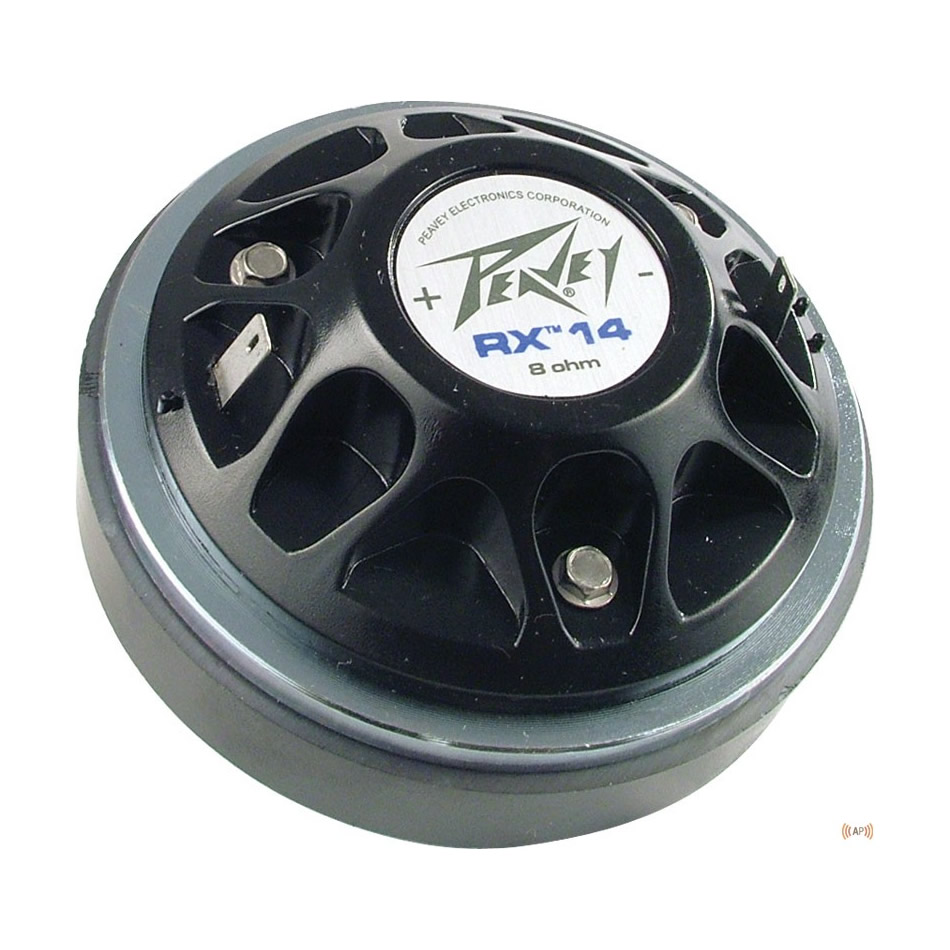

PEAVEY RX 14 Compression Driver

* 1.4″
* Throat Parameter: .938″ / 23.8 mm
* Nominal Impedance: 8 Ohms
* Minimum Impedance: 7.1 Ohms
* DC Resistance: 6.8 Ohms
* Power Capacity 1000 Hz to 20,000 Hz: 120 W peak 60 W program 30 W continuous
* Sensitivity: 104 dB SPL 1 Watt at 1 meter On-axis on 90º H x 45 V horn
* Nominal Efficiency: 30%
* Frequency Response: 1.5 kHz to 20 kHz
* Recommended Crossover: 1,800 Hz at 12 dB / Octave
* Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
* Diaphragm: Commercially pure titanium
* Voice Coil Diameter: 1.4″ / 34.4 mm
* Voice Coil Material: Edge-wound ribbon with high temp Kapton bobbin
* Flux Density: 11,500 gauss (1.15T)
* Dimensions: 3.54″ (90 mm) diameter x 2.40″ (61 mm) depth
* Horn Coupling Diameter: .938″ (23.8 mm)
* Horn Coupling Threads: Standard 1 3/8″ – 18″
* Net Weight: 33.6 oz.
* Shipping Weight: 38 oz.
